■Specification Details

Seesaw mechanism + optical lever mechanism for contact-type high precision!

Specifications of the cutting tool contact part

(seesaw type)

sougusessyoku-bu

[Specification]

■ Seesaw part

Material

Aluminum

Fulcrum

Waterproof & dustproof (Equivalent to IPX7)

Range of motion

Maximum 1mm(z-axis direction)



■ The cutting tool contact side (Sensor side)

Diameter

6mm

Material

SK Steel (tempering and polishing)

Flatness

Ra0.05μm or less

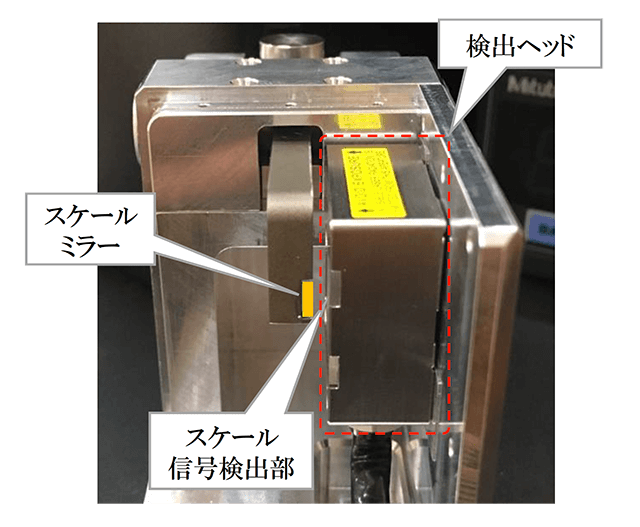

Specifications of the detection part
(optical lever/laser type)

kensyutsu-bu

[Specification]

■ Optical Sensor Unit

Output Wavelength

0.25μm

Resolution

3.5pm (0.00000038μm)

Main unit noise

S/N ratio 30pm



■ Scale mirror

Material

Quartz glass

Pitch

Grating Pitch


■ Preamplifie
Response speed

1.8m/s

*Amplifies and outputs the signal from the optical sensor unit

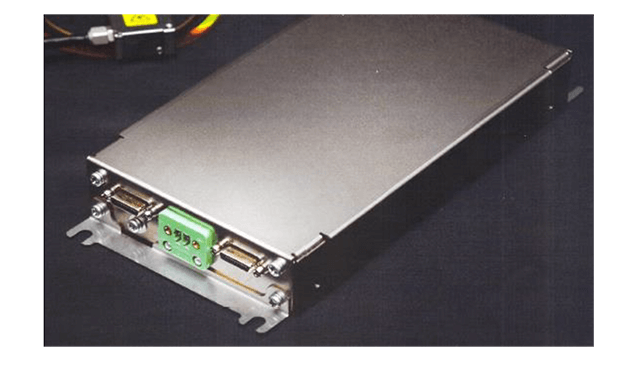

Interpolator specifications

Interporator

[Specification]

Split the detection signal of the laser unit

Maximum division

65,536 division

Maximum resolution

2.1pm

Operating temperature range

+10℃〜+35℃ (No condensation)

Storage temperature range

-10℃〜+50℃ (Humidity 60% or less)


■Basic Configuration

Small and lightweight, can be retrofitted to MC machines/Easy to move and set up!!

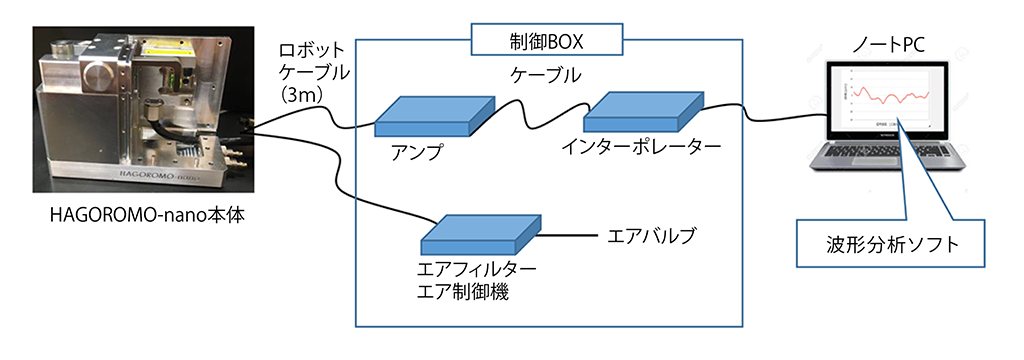

Basic configuration - MC machine non-interlocking type (demo system)

mc-ki_hirendougata_demo

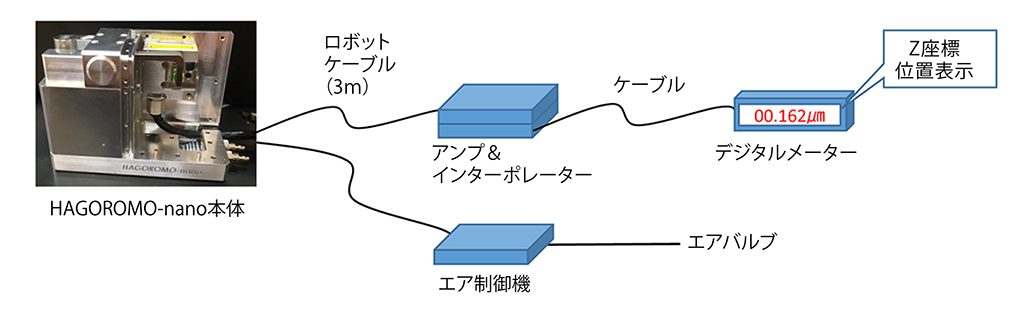

Basic configuration - MC machine non-interlocking type (product version)
me-ki_hirendougata_syouhin

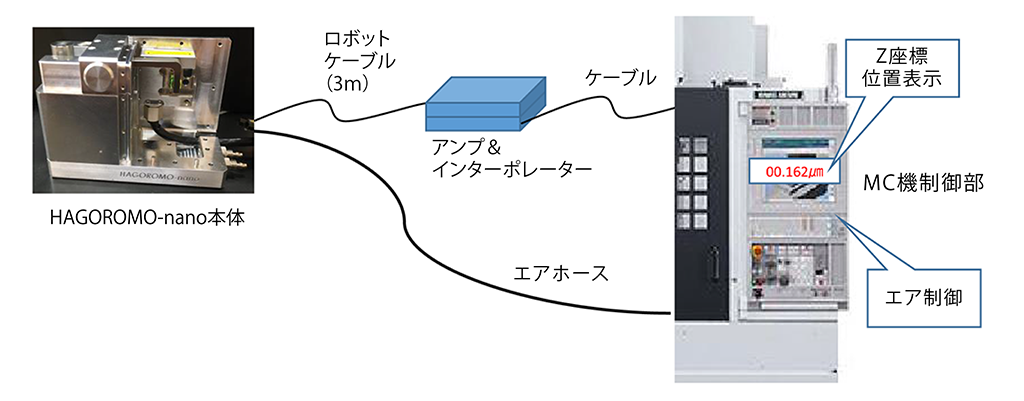

Basic configuration - MC machine interlocking type (product version)

mc-ki_rendougata_syouhin


*The above specifications are subject to change without notice.



■ Installation Image

Image of installation inside an MC machine (experimental machine used for test)

mc-kinai_image

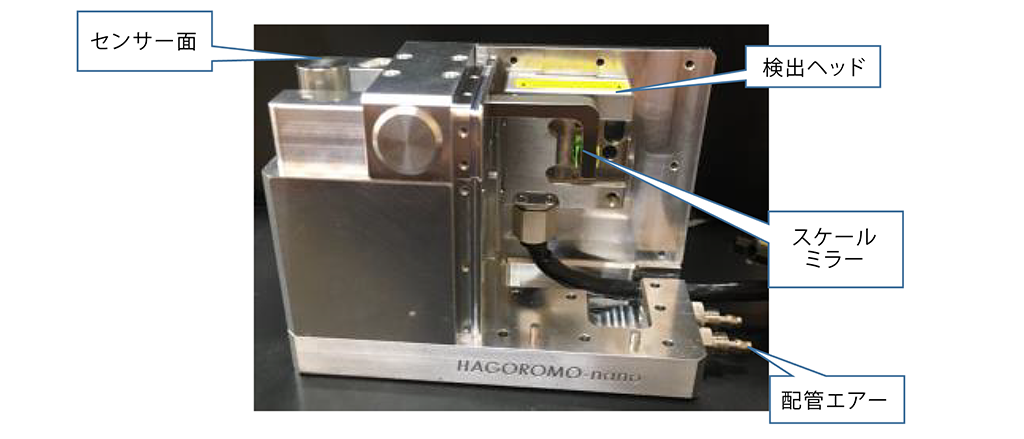

Names of parts

parts-name


Specification
Body size

Width 60, height 70, length 105 (mm)

Air consumptio

0.3 Mpa

Weight: Approx

0.2 kg

Power consumption

100 V
