■ Specification

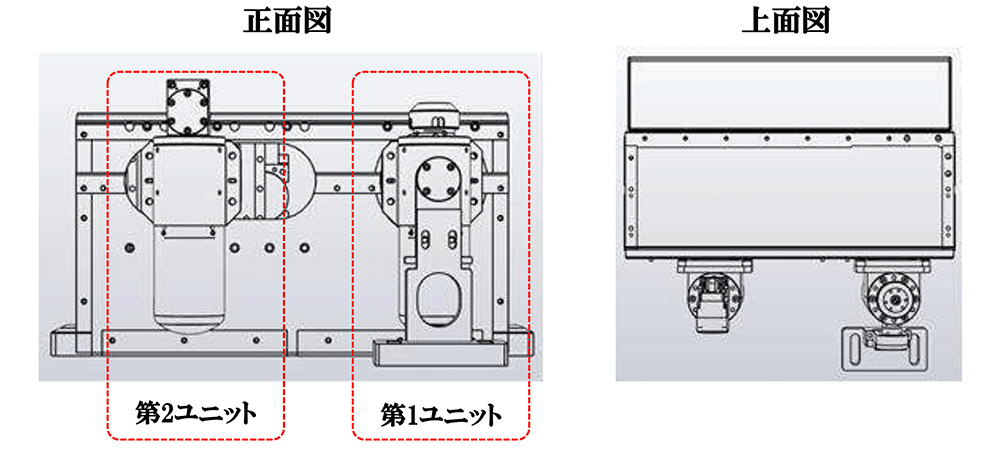

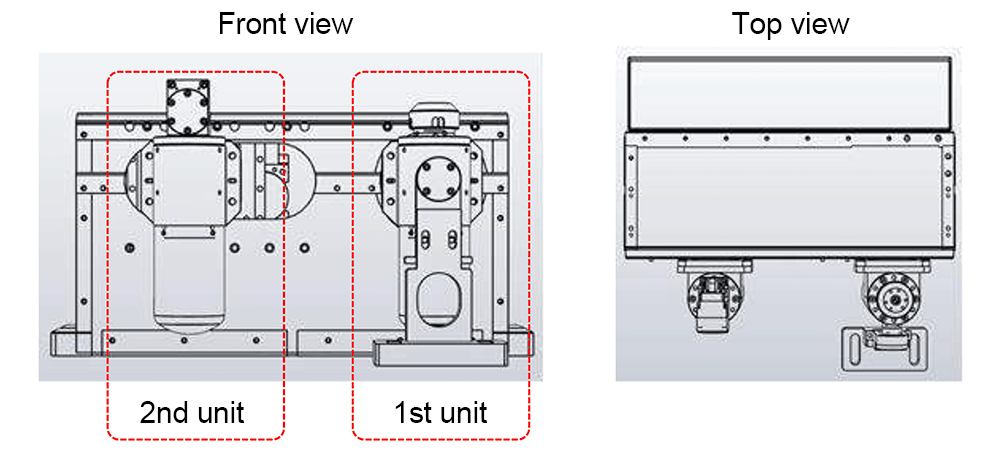

Basic configuration
基本仕様
| Items | Values | ||
| Size | Main body | W600mm × D450mm × HH219.5mm | |
| Control tablet | W300mm × vertical 219.3mm × thickness 9.1mm | ||
| Control box | W600mm × D210mm × H700 m | ||
| Weight (main body) | 40kg |
||
| Weight (control box) | 100kg | ||
| Power cable (type) | 3 Phase | ||
| Power cable (voltage/current) | 220V/16A | ||
| Power cable (diameter x length) | 150mm × 10m | ||
| Axis configuration |
1st Unit spindle (rotating shaft) | Axis rotation 360° | |
| 1st Unit inclination | ＋120°～－120 | ||
| 2nd Unit spindle (rotating shaft) | Axis rotation 360° | ||
| 2nd Unit inclination | ＋120°～－120° | ||
| 2nd Unit horizontal movement axis | 60mm | ||
| Distance between 1st and 2nd unit (distance between the rotational centers of each unit) | 60mm | ||
| Chucking | 1st Unit | Collet type (air clamp drive) | |
| 2nd Unit | Jig sandwich method (air clamp drive) | ||
| Compatible blank size | ORIGAMI dedicated blank (round bar type/Φ10mm to Φ6mm) | ||
| Compatible blank material | Brass/Aluminum/SUS | ||
| Manufacturer/distributor | Iriso Precision Co., Ltd. | ||
| Technical consultation desk | Micro Cutting R&D, Inc. | ||
*The above specifications are subject to change without notice.

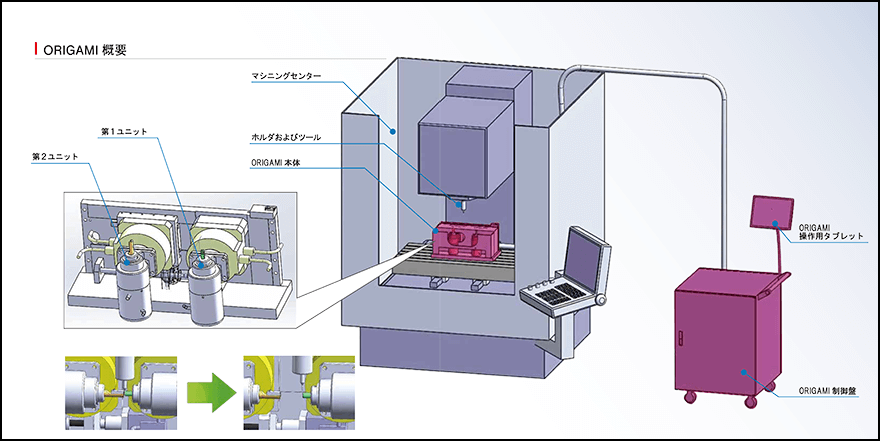

■ Installation image
